| Type of CAT5 | 4x WAY CAT5 Transmitter(Tx)/Receiver(Rx)/Repeater |
| Type of Signals | 2x WAY Component Video (YPBPR) Via 3x RCA connectors |
| CAT5 connection | Provided by the category5 Cable via RJ-45 connectors CAT5 Repeater for Loop output to Another CAT5 Receiver |
| Video Bandwidth | 225MHz(-3dB), 450MHz(-3dB) Large signal bandwidth |
| Output Balance Error | -60dB @ 50MHz |
| High isolation between Amplifier | 80dB @ 10MHz |
| Color proofread | TINT and BRIGHTNESS adjustmen |
| HD resolutions | 480i / 480p / 720p / 1080i and 1080p |
| CAT5 Extend distance | 100M (330FT) Maximum |
| Enclosure | Ear-Wall mounting attached |
| Safety Approvals | CE, FCC, VCCI |
| Dimension (WxDxH) | 4.49" x 2.87" x 1.14" (113mm x 73mm x 29mm) |
| Weight | 0.2 kg / 0.44 lb |
| Power Supply | DC12V / 1A Max Use Universal Switch Type 50/60Hz, 100~240VAC |
.png "SB-6802T | SB-6802R HDMI Over 2xIP Extender")

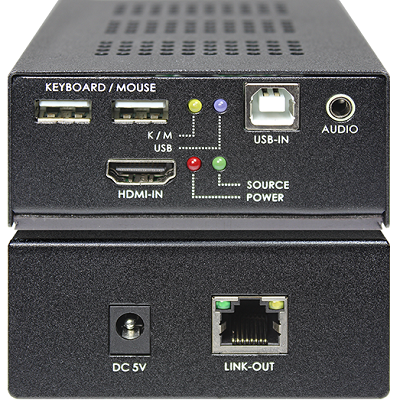

.png "SB-6180T|SB-6180R KVM with Audio CAT.6 Extender")
